iCarsoft i980 Multi-System Scanner | Multiple Mercedes-Benz Fitments (i980)

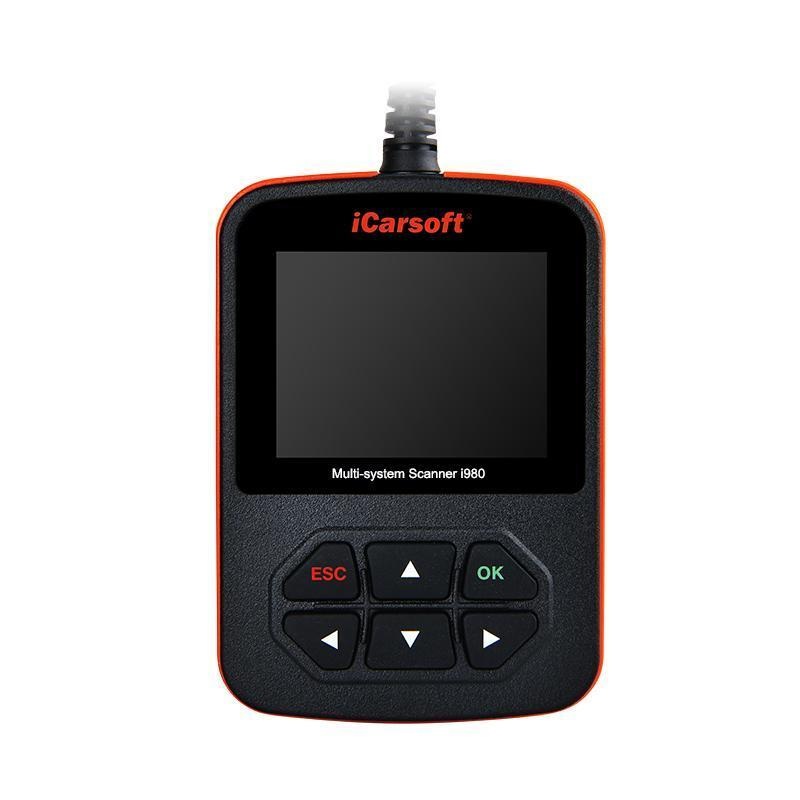

Mercedes-Benz i980 Multi-System Scanner by iCarsoft

i980 is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc. It’s Specially designed for Mercedes Benz/ Sprinter/smart which cover multi-systems. This product supplies colorful TFT screen and unique diagnostic software.

i980 Multi-system Scanner supports full system diagnosis. It’s a powerful DIY tool, test modes include: CANBUS, ISO9141, KWP2000, J1850 etc.. It enables technicians to accurately diagnose complex problems.

Features

• Read and Erase Codes
• I/M Readiness — I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• Data Stream
• Freeze Frame — When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test — This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
• On-Board Monitoring — This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
• Evap System Test — The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information — The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
• Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
• Turn off Check Engine Light (MIL), clear codes and reset monitors
• Read live PCM data stream
• Support CAN (Controller Area Network) and all other
• Multilingual menu and DTC definitions- English, Spanish, and German, etc
• Read pending DTCs
• Read permanent DTCs
• DTCs search
• Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
• Works on most of 2001 and later OBDII compliant PETROL European vehicles
• Works on most of 2004 and later OBDII compliant DIESEL European vehicles
• Works on most of 1996 and later OBDII compliant US and Asian vehicles
• View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
• Comprehensive Help, Including OBD Parameter, Mode Explanations & More

Benefits

• Full color 2.8″ screen
• High Speed Upgrade
• Support Multi-language
• Read & Clear DTCs
• Read Date Stream
• Great customer experience
• Full System Diagnosis

Specifications

• Display: 2.8″ Color screen, 320 x 240 pixels display with contrast adjustment
• Operation Temperature: 0C – 50C
• Storage Temperature: -20C – 70C
• Power: 9V – 18V
• Operating current: 100mA @ 12V (Typical)
• Power consumption: 1.2W (Typical)
• Dimensions: 121mm x 86mm x 26mm (LxWxH)
• Weight:300g

Applications

• Mercedes Benz A Class: W 168 , W 169 , W 176
• Mercedes Benz B Class: 245 , 246
• Mercedes Benz C Class: 203 , 204
• Mercedes Benz CL Class: 215 , 216
• Mercedes Benz CLC Class: 203 , 204
• Mercedes Benz CLK Class: 209 207
• Mercedes Benz CLS Class: 218 , 219
• Mercedes Benz E Class: 207 , 211 , 212
• Mercedes Benz G Class: 461 , 463
• Mercedes Benz GL Class: X 164 , X 166
• Mercedes Benz GLK Class: X 204
• Mercedes Benz M Class: W 163 , W 164 , W 166
• Mercedes Benz Maybach Class: 240
• Mercedes Benz R Class: 251
• Mercedes Benz S Class: 220 , 221
• Mercedes Benz SL Class: R 230 , R 231
• Mercedes Benz SLK Class: R 170(after 2001) , R 171 , R 172
• Mercedes Benz SLS: C 197
• Mercedes Benz Smart Fortwo (A/C 450)
• Mercedes Benz Smart Fortwo (C/A 451)
• Mercedes Benz Smart Roadster (R/C 452)
• Mercedes Benz Smart Roadster (W454)
• Mercedes Benz Sprinter 901.6, 902.6, 903.6, 904.6, 905.6, 690, 906 (Up tp 2017)
• Mercedes Benz Vaneo (16 pin)
• Mercedes Benz Vito/V-Class Model Designation 638
• Mercedes Benz Vito/Viano Model Designation 639 (OBDII)

Multi-Language Support

• English
• German
• Spanish
• French
• Portuguese
• Russian
• Dutch

What’s In The Box?

• i980 Main Device
• Hardcopy User’s Manual
• 3-foot OBD II cable
• Data Cable
• Nylon carry case

Warranty

• Manufacturer Standard Warranty
